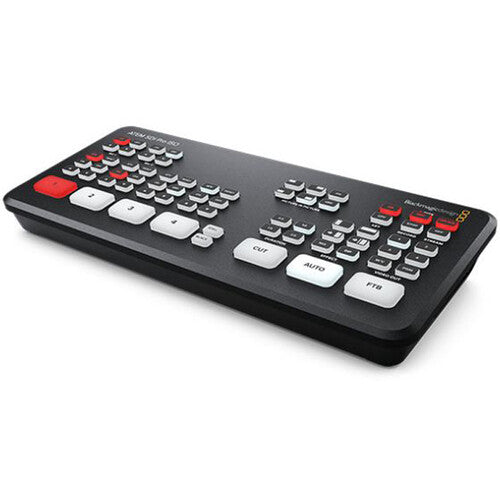

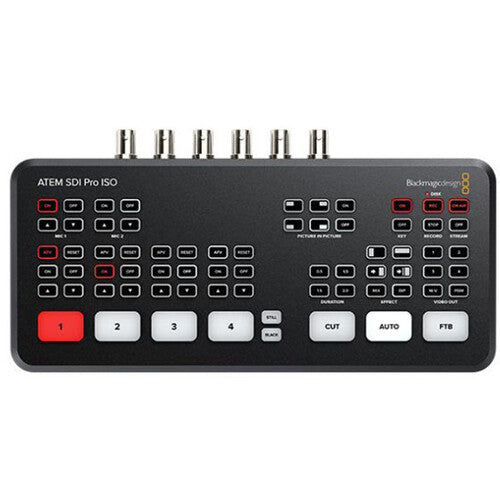

Blackmagic Design ATEM SDI Pro ISO Switcher (Video Mixer)
GH₵19,935.00
Skip to product information
Product Highlights4-Channel Live Stream 3G-SDI SwitcherProgram and 4 x Input ISO RecordingGenerates DaVinci Resolve ProjectLive Tally, Stream, and Record StatusRecord Button, Channel Preview Multiview2-Channel Digital Audio Mixer per Source3G-SDI Output, Ethernet ATEM ControlMedia Player, Computer Input SupportUpstream and Downstream KeyersDVE Transition, ChromaLuma KeyersSpecsBlackmagic Design ATEM SDI ProSpecsAvailable ME Layers5 MEEffect TypesDVE, Transition, Chroma KeyGenerators1 xPattern2 xColorAudio Mixing2-Channel MixingProcessingSwitching TypeIR Remote, Pushbutton, SoftwareInputNumber of Video Input Sources4Video Input Connectors4 xBNC (3G-SDI)Input Video FormatSDI (10-Bit 422 YUV)1080p at 23.98242529.97305059.9460 fps1080i at 5659.9460 fps720p at 5059.9460 fpsAudio Input Connectors2 x18" 3.5 mm TRS Stereo Analog FemaleInput Audio FormatAnalogEmbedded Audio InputSDI 2-Channel (per Input)OutputVideo Output Channels3Video Output Connectors2 xBNC (3G-SDI)1 xUSB Type-COutput Video FormatSDI (10-Bit 422 YUV)1080p at 23.98242529.97305059.9460 fpsUSB Type-C (10-Bit 422 YUV)1080p at 23.98242529.97305059.9460 fpsEmbedded Audio OutputSDIMultiview OutputNoneConnectivityOther IO1 xRJ45 Control InputOutputHDCP SupportNoneHardwareOS CompatibilitymacOS 11macOS 12 or LaterWindows 10Windows 11*As of July, 2022 Check with manufacturer for the most up-to-date compatibilityPower Connector1 xBarrel (12 VDC) InputPower ConsumptionDevice 36 WEnvironmentalOperating Temperature41 to 104F 5 to 40CStorage Temperature14 to 140F -10 to 60COperating Humidity0 to 90% (Non-Condensing)GeneralDimensions9.35 x 4.67 x 1.38" 23.75 x 11.86 x 3.51cmWeight23.9oz 678gPackaging InfoPackage Weight2.355 lbBox Dimensions (LxWxH)10.5 x 7.2 x 2.6"Product Highlights 4-Channel Live Stream 3G-SDI Switcher Program and 4 x Input ISO Recording Generates DaVinci Resolve Project Live Tally, Stream, and Record Status Record Button, Channel Preview Multiview 2-Channel Digital Audio Mixer per Source 3G-SDI Output, Ethernet ATEM Control Media Player, Computer Input SupportProduct Highlights 4-Channel Live Stream 3G-SDI Switcher Program and 4 x Input ISO Recording Generates DaVinci Resolve Project Live Tally, Stream, and Record Status Record Button, Channel Preview Multiview 2-Channel Digital Audio Mixer per Source 3G-SDI Output, Ethernet ATEM Control Media Player, Computer Input Support Upstream and Downstream Keyers DVE Transition, ChromaLuma Keyers Specs Blackmagic Design ATEM SDI ProSpecs Available ME Layers 5 ME Effect Types DVE, Transition, Chroma Key Generators 1 xPattern2 xColor Audio Mixing 2-Channel Mixing Processing Switching Type IR Remote, Pushbutton, Software Input Number of Video Input Sources 4 Video Input Connectors 4 xBNC (3G-SDI) Input Video Format SDI (10-Bit 422 YUV)1080p at 23.98242529.97305059.9460 fps1080i at 5659.9460 fps720p at 5059.9460 fps Audio Input Connectors 2 x18" 3.5 mm TRS Stereo Analog Female Input Audio Format Analog Embedded Audio Input SDI 2-Channel (per Input) Output Video Output
Blackmagic Design ATEM SDI Pro ISO Switcher (Video Mixer)
GH₵19,935.00
Product Highlights
- 4-Channel Live Stream 3G-SDI Switcher
- Program and 4 x Input ISO Recording
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, ChromaLuma Keyers
Specs
Blackmagic Design ATEM SDI ProSpecs
| Available ME Layers | 5 ME |
| Effect Types | DVE, Transition, Chroma Key |
| Generators |
1 xPattern 2 xColor |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | IR Remote, Pushbutton, Software |
Input
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 xBNC (3G-SDI) |
| Input Video Format |
SDI (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps 1080i at 5659.9460 fps 720p at 5059.9460 fps |
| Audio Input Connectors | 2 x18" 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | SDI 2-Channel (per Input) |
Output
| Video Output Channels | 3 |
| Video Output Connectors |
2 xBNC (3G-SDI) 1 xUSB Type-C |
| Output Video Format |
SDI (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps USB Type-C (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps |
| Embedded Audio Output | SDI |
| Multiview Output | None |
Connectivity
| Other IO | 1 xRJ45 Control InputOutput |
| HDCP Support | None |
Hardware
| OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022 Check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 xBarrel (12 VDC) Input |
| Power Consumption | Device 36 W |
Environmental
| Operating Temperature | 41 to 104F 5 to 40C |
| Storage Temperature | 14 to 140F -10 to 60C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
General
| Dimensions | 9.35 x 4.67 x 1.38" 23.75 x 11.86 x 3.51cm |
| Weight | 23.9oz 678g |
Packaging Info
| Package Weight | 2.355 lb |
| Box Dimensions (LxWxH) | 10.5 x 7.2 x 2.6" |
