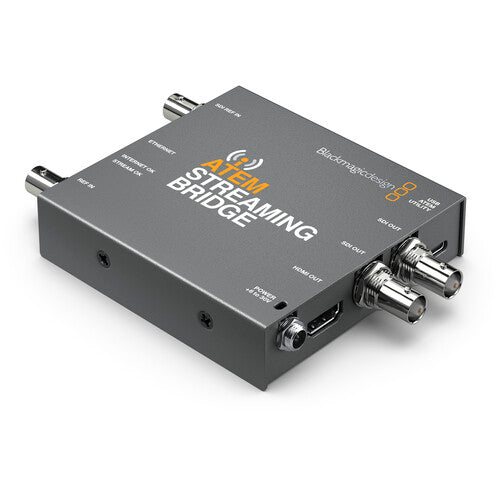

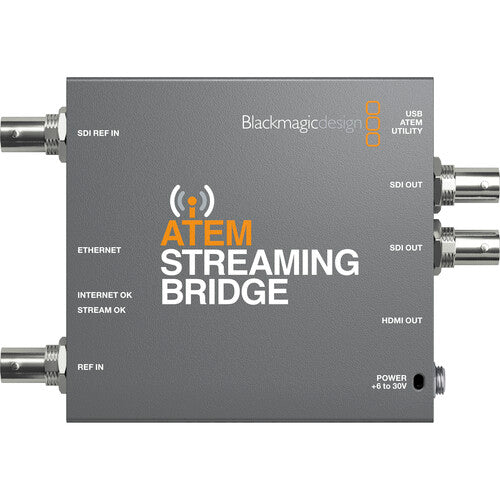

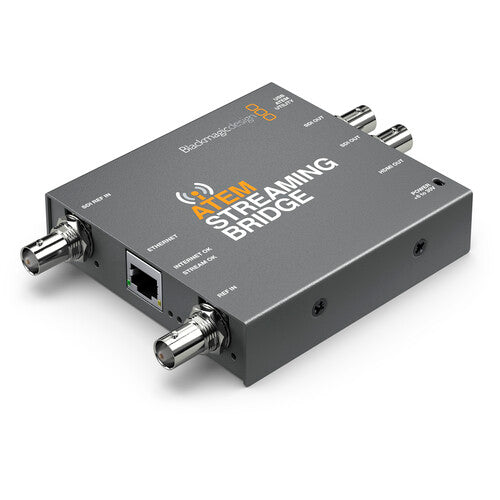

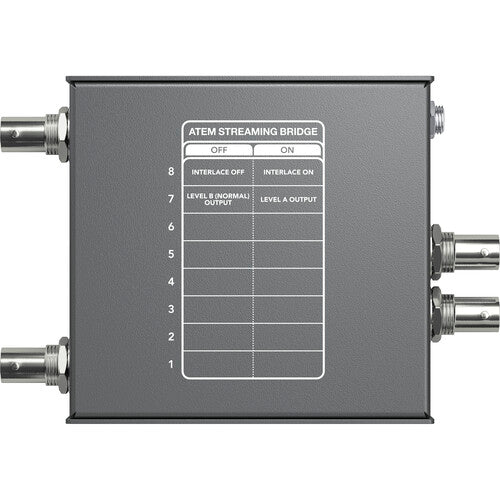

Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
GH₵6,450.00
Product Highlights
- For Any ATEM Mini Pro Streaming Switcher
- HDMI and SDI Outputs
- Up to 1080p60 Resolution Output
- Direct, Network, and Internet Connection
- IP Addressable, Software Controllable
Specs
Blackmagic Design Atem Streaming BridgeSpecs
Inputs Outputs
| Audio Inputs | No |
| Video Outputs | 2x BNC (3G-SDI) 1x HDMI (1.4) |
| Audio Outputs | No |
| Other IO | 1x RJ45 2x BNC Reference |
| Expansion Slots | No |
Format Support
| Output Video Format |
HDMI 1080p at 23.98242529.97305059.9460 fps 1080i 5059.9460 fps SDI (10-Bit 422 YUV) 1080p at 23.98242529.97305059.9460 fps 1080i 5059.9460 fps |
Standards
| Video Standard Compliance | SMPTE 259M292M296M424M-B425M-A425M-B |
IP Streaming
| Video IP Decoding | H.264 1920 x 1080 |
Power
| Power IO | 1x Barrel (6 to 30 VDC ) Input |
| Power Consumption | Device 6 W |
Environmental
| Operating Temperature | 32 to 72F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% (Recommended) |
General
| Certifications | CE, FCC, Kcc |
| Dimensions | 5.28 x 3.63 x 0.9" 13.41 x 9.22 x 2.29cm |
| Weight | 8.1oz 230g |
Packaging Info
| Package Weight | 1.07 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.7" |
