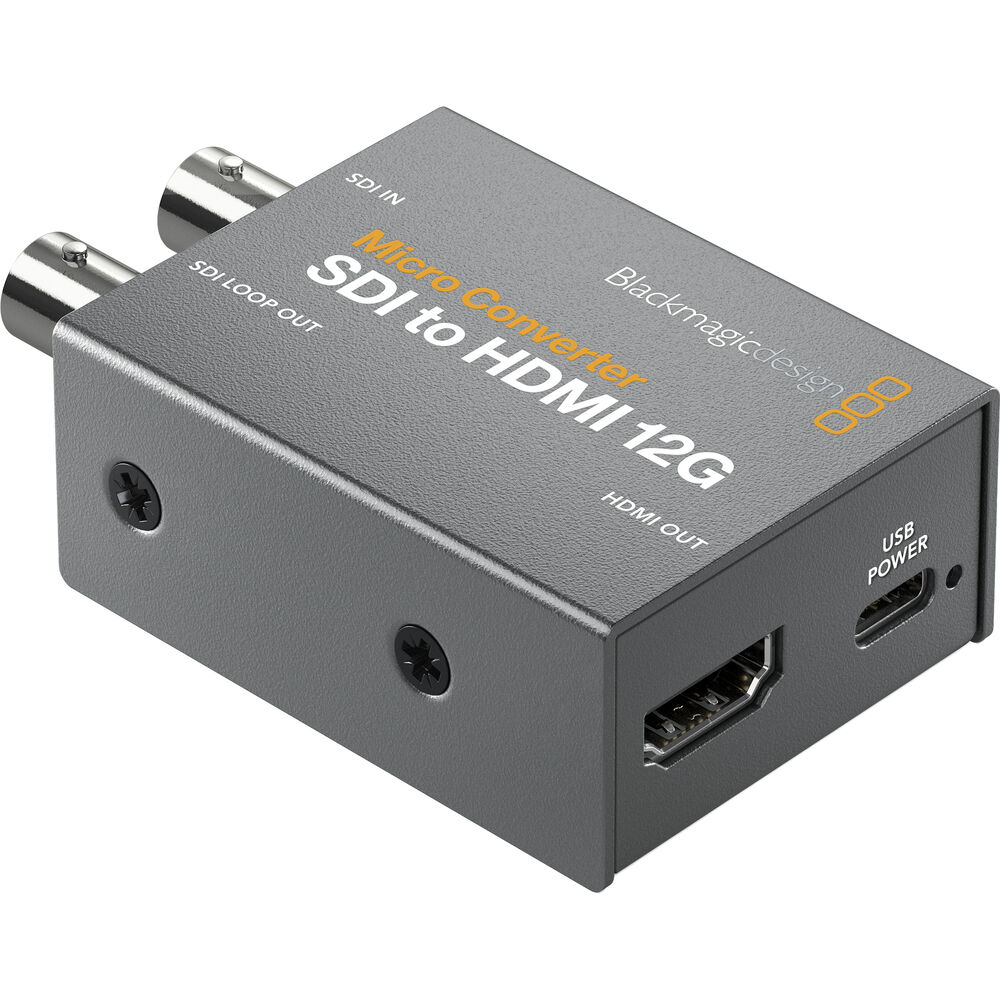

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
GH₵3,560.00
Product Highlights
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SDHD Level AB SDI Ports
- Supports up to DCI 4K60 Resolution IO
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- A Power Supply Is Included
- LED Video & Power Signal Indicators
Specs
Blackmagic Design Micro Converter WPSUSpecs
InputsOutputs
| Video Inputs | 1x BNC (12G-SDI) Female |
| Audio Inputs | No |
| Video Outputs | 1x HDMI (2.0) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio Outputs | No |
| Other IO | 1x USB-C Control, Firmware Input |
| Expansion Slots | No |
Format Support
| Input Video Format |
SDI (810-Bit 422 RGB, YUV) DCI 4K at 23.98242529.973047.95485059.9460 fps UHD 4K 242529.973047.95485059.9460 fps 1080p 23.98242529.973047.95485059.9460 fps 1080i 5059.9460 fps 720p 5059.9460 fps 480i 525 lines 29.97 fps 576i 625 lines 25 fps |
| Output Video Format |
HDMI (810-Bit 422 RGB, YUV) DCI 4K at 23.98242529.973047.95485059.9460 fps UHD 4K 23.98242529.973047.95485059.9460 fps DCI 2K 23.98242529.973047.95485059.9460 fps 1080p 23.98242529.973047.95485059.9460 fps 1080PsF 2529.9730 fps 1080i 5059.9460 fps 720p 5059.9460 fps 480i 525 lines 29.97 fps 576i 625 lines 25 fps |
| Embedded Audio | HDMISDI |
Standards
| Video Standard Compliance | SMPTE 259M292M296M424M425MST-2081-1ST-2081-10ST-2082-1ST-2082-10ST-2084 |
| HDCP Support | Yes Version 2.2 |
| HDR Support | Not Specified by Manufacturer |
Hardware
| OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
Power
| Power IO | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | Device 4 W |
Environmental
| Operating Temperature | 32 to 72F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% () |
General
| Dimensions | 3.01 x 1.8 x 0.98" 76.45 x 45.7 x 24.89mm |
| Weight | 5.29oz 150g |
Packaging Info
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.7 x 4 x 2.8" |
