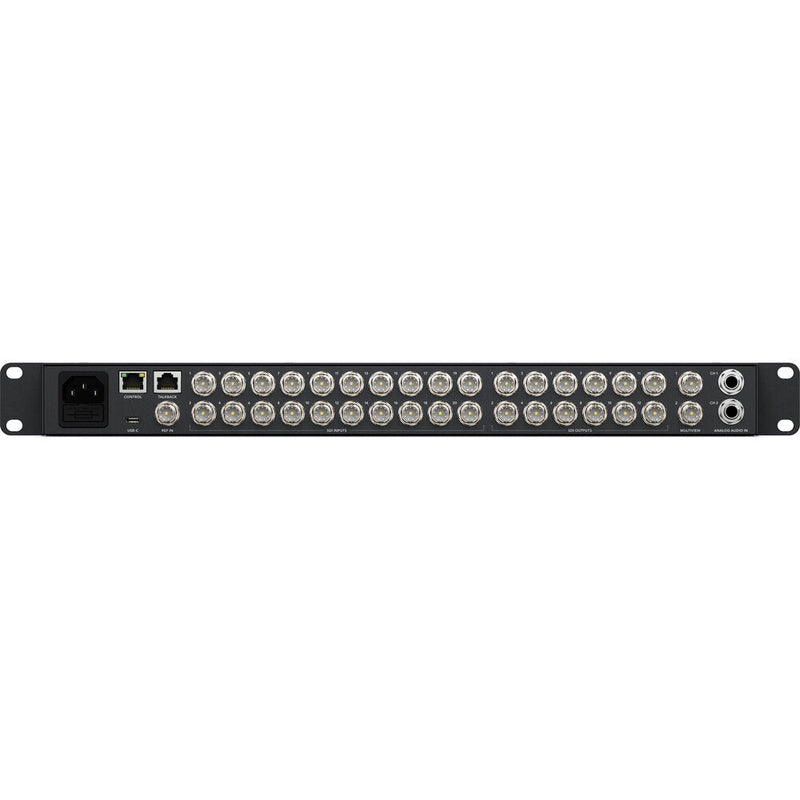

Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher (1 RU)
GH₵95,689.00
Product Highlights
- Supports 123GHD-SDI at 10-Bit
- 20 x 12G-SDI Input, 12 x 12G-SDI Output
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame RateFormat Converter per Input
- 48-Channel Audio Mixer
- 8 x Upstream, 2 x Downstream Keyer
- ChromaLuma Keyers
- ColorPattern Generators
- Hardware or Software MacWindows Control
Specs
Blackmagic Design Atem Constellation 4K 2 MESpecs
| Available ME Layers | 2 ME |
| Effect Types | 8x Chroma Key 11x Luma Key 2x DVE, Stinger 2x DVE |
| Downstream Keys | 2x Chroma, Luma, DVE |
| Generators | 2x Color 11x Pattern |
| Audio Mixing | 48-Channel Mixing |
Processing
| Switching Type | Pushbutton, Software |
| Latency | 10 Lines |
| Processing Resolution | UHD 4K |
| Color Processing | 10-Bit 422 |
Input
| Number of Video Input Sources | 20 |
| Video Inputs | 20x BNC (12G-SDI) Female |
| Input Video Format |
SDI UHD 4K at 23.98242529.97305059.9460 fps 1080p at 23.98242529.97305059.9460 fps 1080i at 5059.9460 fps 720p at 5059.9460 fps |
| Audio Inputs | 2x 14" TRS |
| Embedded Audio Input | SDI 16-Channel |
Output
| Video Output Channels | 12 |
| Video Outputs | 12x BNC (12G-SDI) Female |
| Output Video Format |
SDI UHD 4K at 23.98242529.97305059.9460 fps 1080p at 23.98242529.97305059.9460 fps 1080i at 5059.9460 fps 720p at 5059.9460 fps |
| Embedded Audio Output | SDI 16-Channel |
| Multiview Output | 16-Way Multiview |
Connectivity
| Other IO | 1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN InputOutput 1x RJ45 Talkback InputOutput 1x BNC Blackburst, Reference, Tri-Level Sync Input |
| Video Standard Compliance | SMPTE 292M296M424M424M-A424M-BST 2081-10ST-2081-1ST-2082-1ST-2082-10 |
Display
| Display Size | 2.2" |
Hardware
| OS Compatibility | Windows 10 to 11 macOS 13.0 to 14.0 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | Yes |
| Bluetooth | No |
| Power IO | 1x IEC C13 Input |
| Power Consumption | Device 100 to 240 VAC (90 W) |
Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% |
General
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 9.22 x 1.74" 48.3 x 23.42 x 4.42cm |
| Weight | 6.55lb 2.97kg |
