Blackmagic Design ATEM 2 M/E Production Studio 4K (Video Mixer)
GH₵111,599.00
Product Highlights
- Supports NTSCPALHDUltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 20 x 6G-SDI & 1 x HDMI Inputs
- Tri-SyncBlackburst Ref. Sync Input
- 10 x Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in SDHD4K HD
- 4 Upstream & 2 Downstream Keyers
- 22-Input Audio Mixer
- Hardware or Software MacPC Control
Specs
Blackmagic Design SWATEMPSW2ME4K Specs
| Standards | |
|---|---|
| Ultra HD Support | 3840 x 2160p 23.98242529.97 |
| HD Format Support | 720p 5059.94 1080i 5059.94 1080p 23.98242529.975059.94 |
| SD Format Support | NTSC 52529.97 - 43169 PAL 62525 - 43169 |
| HDMI Input Resolution Supported | Input resolutions for computer 720 x 480i 59.94 Hz 720 x 576i 50 Hz 1280 x 720 5059.94 Hz 1920 x 1080 5059.94 Hz 3840 x 2160 23.98242529.97 Hz Note Also supported are 24, 30, and 60 Hz inputs when switcher is in 23.98, 29.97, and 59.94 Hz formats respectively. |
| SDI Compliance | SMPTE 259M, 292M |

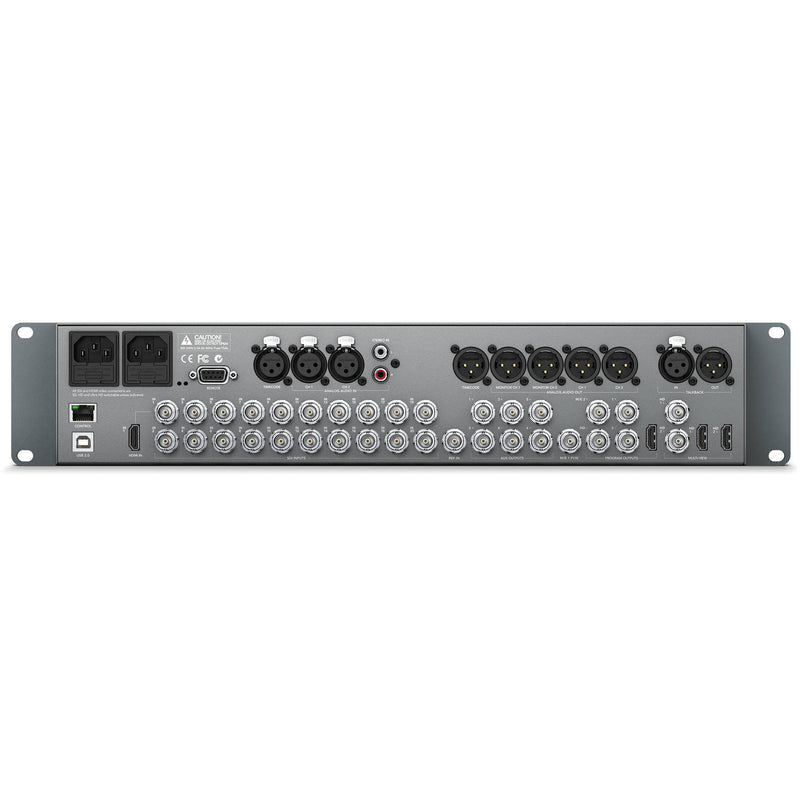

| Connectivity | |
|---|---|
| Video Inputs | 20 x SDI (10-bit SDHDUltra HD switchable) 1 x HDMI Type A (10-bit SDHDUltra HD switchable) 2 Channel embedded audio for SDI and HDMI inputs |
| Audio Input |
Digital 20 x Embedded audio via SDI or HDMI Analog 2 x XLR 2 x RCA Extra Audio Inputs 1 x XLR Timecode 1 x XLR Talkback |
| Audio Output |
SDI Audio Output 2 Channels embedded into SDI outputs Analog 2 x XLR Program 2 x XLR Montior Extra Audio Outputs 1 x XLR Timecode 1 x XLR Talkback |
| Sync Input | 1 x SDI, Tri-Sync or Blackburst |
| Frame Synchronizer | 20 x Internal frame synchronizers (all inputs) |
| Program Output | 3 x SDI (10-bit SDHDUltra HD switchable) 1 x HDMI Type A (10-bit SDHDUltra HD switchable) 1 x SDI (Ultra HD to HD downcoverted output) |
| Preview Output | 1 x SDI (10-bit SDHDUltra HD switchable) |
| Auxiliary Output | 6 x SDI (10-bit SDHDUltra HD switchable) |
| Multi View Output | 2 x SDI 2 x HDMI |
| Multi View Output | 1 x SDI 1 x HDMI |
| Ethernet | 1 x 101001000 BaseT input. Allows direct connection between control panel and chassis, or via network |
| Tally Output | Added via Ethernet connection to Blackmagic Designed GPI and Tally Interface product (sold separately) |
| GPI | Added via Ethernet connection NoteGPI and Tally Interface product are optional and are not included |
| USB Interface | 1x USB 2.0 port |
| Processing | |
|---|---|
| Color Space Conversion | Hardware based, real time |
| Processing Delay | <2 lines |
| Video Sampling | 422 |
| Color Space | REC 601 REC 709 REC 2020 |
| Color Precision | 10-bit |
| Audio Mixer | 22 input mixer (2 channels per input) Selectable OnOffAudio-Follow-Video Level and Peak metering Master gain control Dedicated analog outputs for monitoring |
| Built-in Media Players | |
|---|---|
| Quantity | 2 |
| Channels | 2 x per Media Player (fill and key) |
| Still Image Capacity | 32 with fill and key |
| Clip Capacity |
Quantity 2 with fill and key Maximum Clip Length Ultra HD 180 frames 1080pi 720 frames 720p 1600 frames NTSCPAL 3600 frames |
| Image File Formats |
Still PNG, TGA, BMP, GIF, JPEG, and TIFF Video TGA sequence Audio WAV, MP3, AIFF |
| Multi-View Monitoring | |
|---|---|
| Display | Minimum monitor resolution 1366 x 768 |
| Number of Windows | 2 Multi-view display with 10 x windows for Preview Program 16 x assignable displays |
| Tally | Red for program and green for preview indication NoteRequires optional Blackmagic Design GPI and Tally interface product |
| Window Source Labels | Yes |

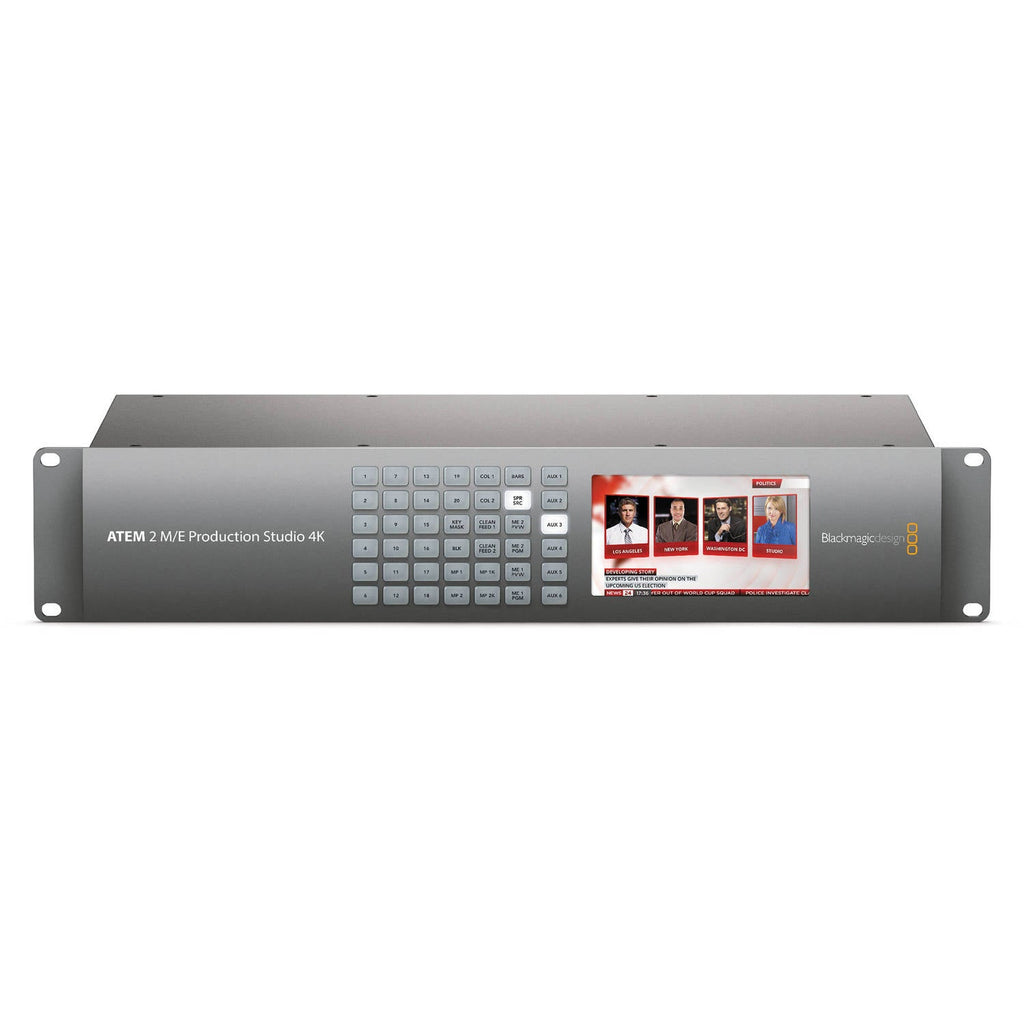

| Front Panel Controls | |
|---|---|
| Buttons | 42 LED buttons for Aux switching |
| LCD Display | LCD display of Aux output |
| Control Panel | |
|---|---|
| Compatibility | ATEM 2 ME Broadcast Panel (preferred) ATEM 1 ME Broadcast Panel |
| Software Compatibility | ATEM Software Control Panel Mac OS X 10.8 Mountain Lion OS X 10.9 Mavericks or later Windows Windows 7 64-bit Windows 8 3264-bit Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis |
| Extras | |
|---|---|
| Layers | 13 total |
| Keyers | 4 x Upstream 2 x Downstream 7 x LinearLuma 1 x Stinger 4 x Chroma 1 x DVE, with 3D borders and drop shadows |
| Generators | 7 x Pattern 2 x Color |
| Power | |
|---|---|
| Power Supply | 2 x built-in power supply 110240 VAC, 5060 Hz NoteIEC power cord required, not included |
| Power Consumption | 150 W |
| General | |
|---|---|
| Operating Temperature | 32 to 104F (0 to 40C) |
| Storage Temperature | -4 to 140F (-20 to 60C) |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Size | 2 RU |
| Dimensions (W x H x D) | 19.00 x 3.54 x 9.25" (48.26 x 8.99 x 23.46 cm) |
| Weight | 9.0 lb (4.1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.1 lb |
| Box Dimensions (LxWxH) | 19.4 x 10.8 x 5.0" |
