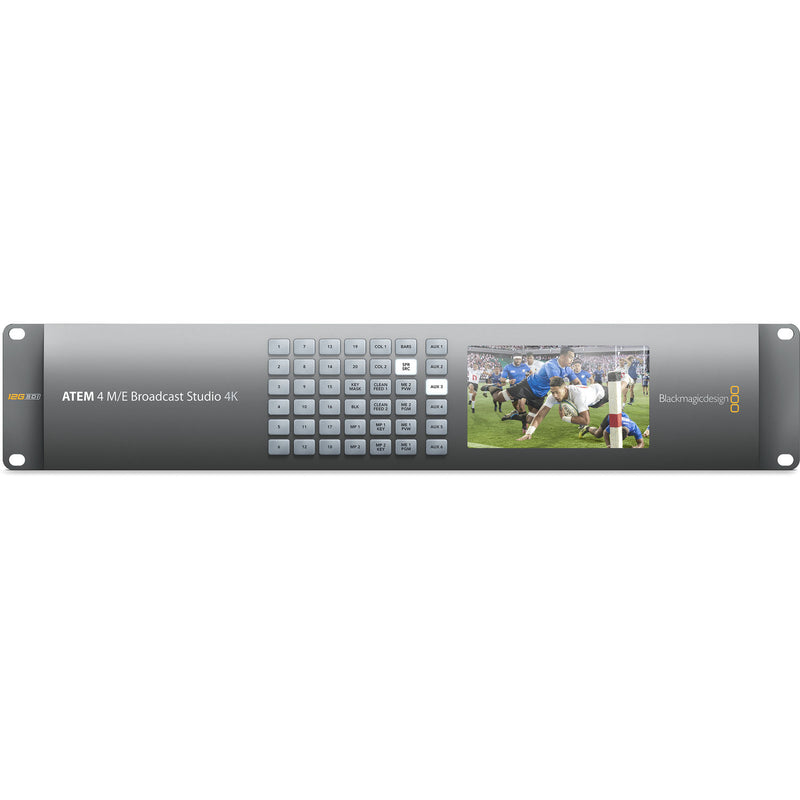

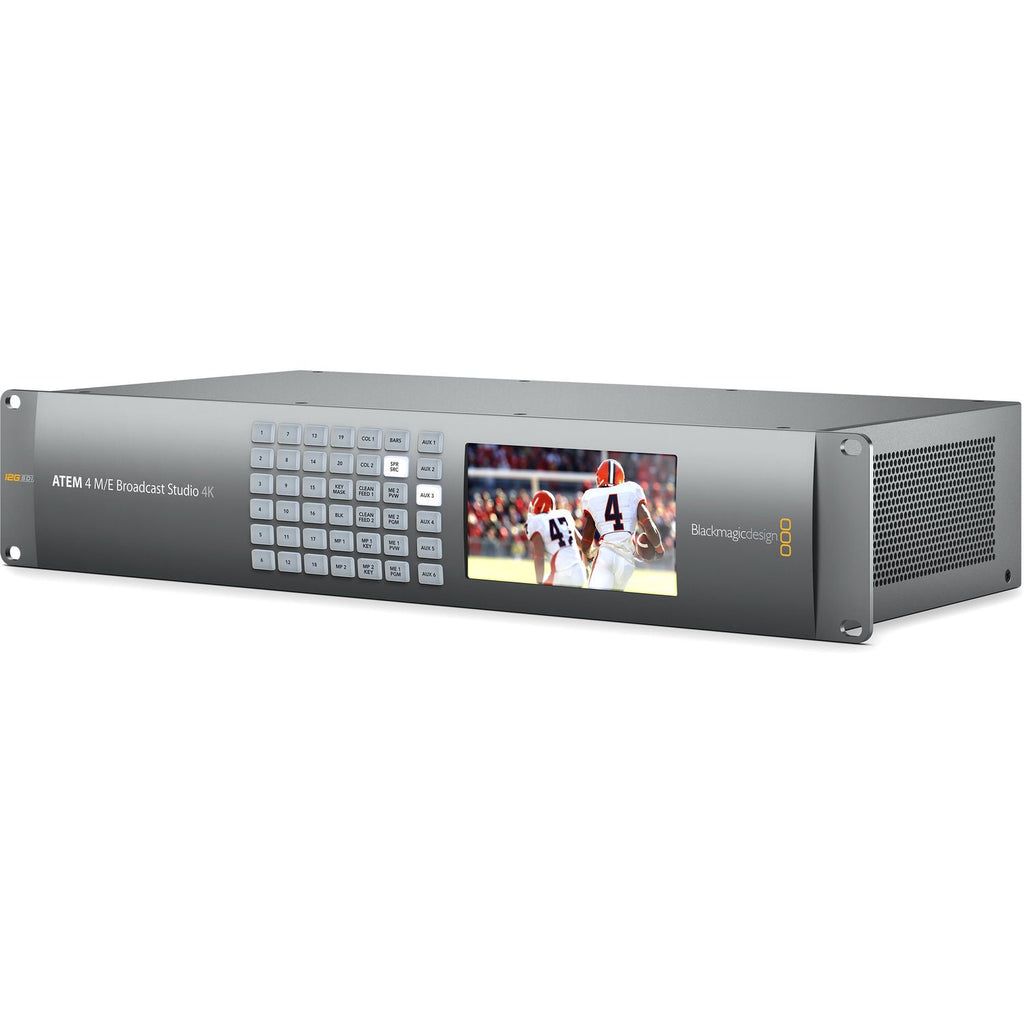

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K (Video Mixer)
GH₵131,899.00
Product Highlights
- Supports HDUltraHD 4K @ 10-bit
- 20 x 12G-SDI Inputs
- Tri-SyncBlackburst Ref. Sync Input
- Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in HD4K HD
- 16 Upstream & 2 Downstream Keyers
- 24-Input x 2-Channel Audio Mixer
- Hardware or Software MacWindows Control
Specs
Blackmagic Design ATEM 4 Specs
| Standards | |
|---|---|
| Format Support | 3840 x 2160 59.945029.97252423.98 1080p 59.945029.97252423.98 1080i 59.9450 720p 59.9450 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 2082 |

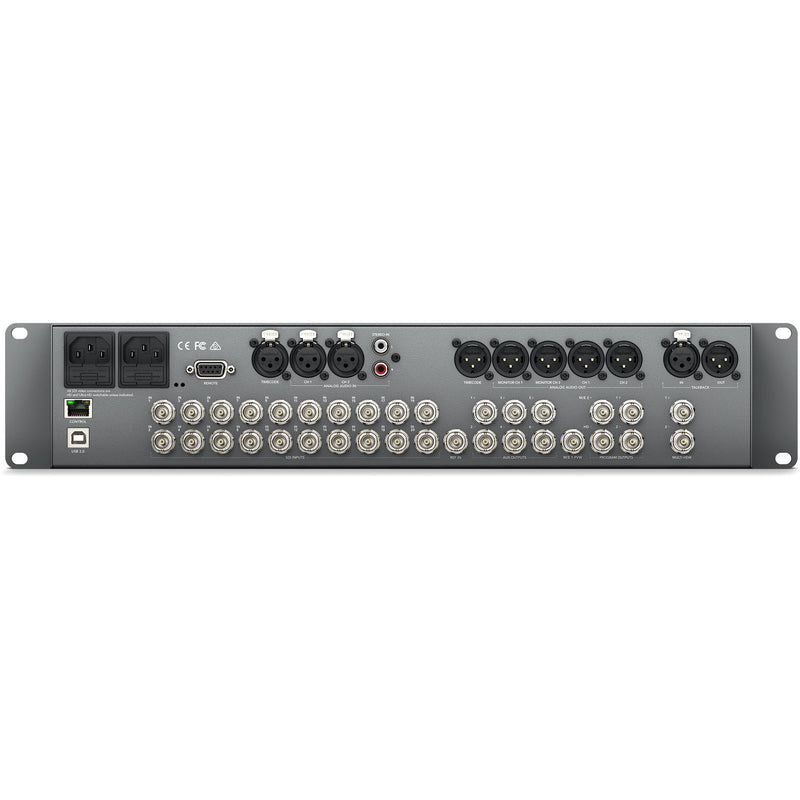

| Connectivity | |
|---|---|
| Inputs | 12G6G3GHD-SDI 20 x BNC Stereo Analog Audio 1 x 2XLR, 1 x 2RCA Talkback 1 x XLR Timecode 1 x XLR Reference 1 x BNC |
| Outputs | SDI Monitor 2 x BNC SDI Program 3 x BNC SDI Aux 6 x BNC SDI ME 1 Preview 1 x BNC SDI ME 2 Program 1 x BNC Analog Audio 4 x XLR Timecode 1 x XLR Talkback 1 x XLR |
| Other IO | Network 1 x RJ45 Computer 1 x USB 2.0 Type-B RS-422 1 x DE-9 |
| Processing | |
|---|---|
| Processing Delay | <7 lines |
| Video Sampling | 422 |
| Color Space | REC 601 REC 709 REC 2020 |
| Color Precision | 10-bit |
| Audio Mixer | 24-input mixer (2 channels per input) |
| Built-in Media Players | |
|---|---|
| Quantity | 4 |
| Clip Capacity |
Quantity 2 with fill and key Maximum Clip Length UHD 360 frames 1080pi 1440 frames 720p 3200 frames |
| Still Image Capacity | 64 with fill and key |
| Image File Formats |
Still PNG, TGA, BMP, GIF, JPEG, and TIFF Video TGA sequence Audio WAV, MP3, AIFF |
| Multi-View Monitoring | |
|---|---|
| Display | Minimum monitor resolution 1366 x 768 |
| Number of Windows | 2 x Multi-view displays with 10 x windows for PreviewProgram 16 x assignable displays |
| Tally | Red for program and green for preview indication NoteRequires optional Blackmagic Design GPI and Tally interface product |
| Extras | |
|---|---|
| Layers | 29 Total |
| Keyers | 16 x Upstream 2 x Downstream 19 x LinearLuma 1 x Stinger 16 x Chroma 1 x DVE |
| Generators | 7 x Pattern 2 x Color |
| Power | |
|---|---|
| Power Supply | 2 x built-in power supply 110240 VAC, 5060 Hz NoteIEC power cord required, not included |
| Power Consumption | 300 W |
| General | |
|---|---|
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Size | 2 RU |
| Dimensions (W x H x D) | 19 x 3.5 x 9.25" 48.3 x 9 x 23.5 cm |
| Weight | 6 lb 2.72 kg |
| Packaging Info | |
|---|---|
| Package Weight | 12.75 lb |
| Box Dimensions (LxWxH) | 19.4 x 10.8 x 5.2" |
