Blackmagic Design HyperDeck Studio HD Mini
GH₵9,625.00
Product Highlights
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 422 10-Bit

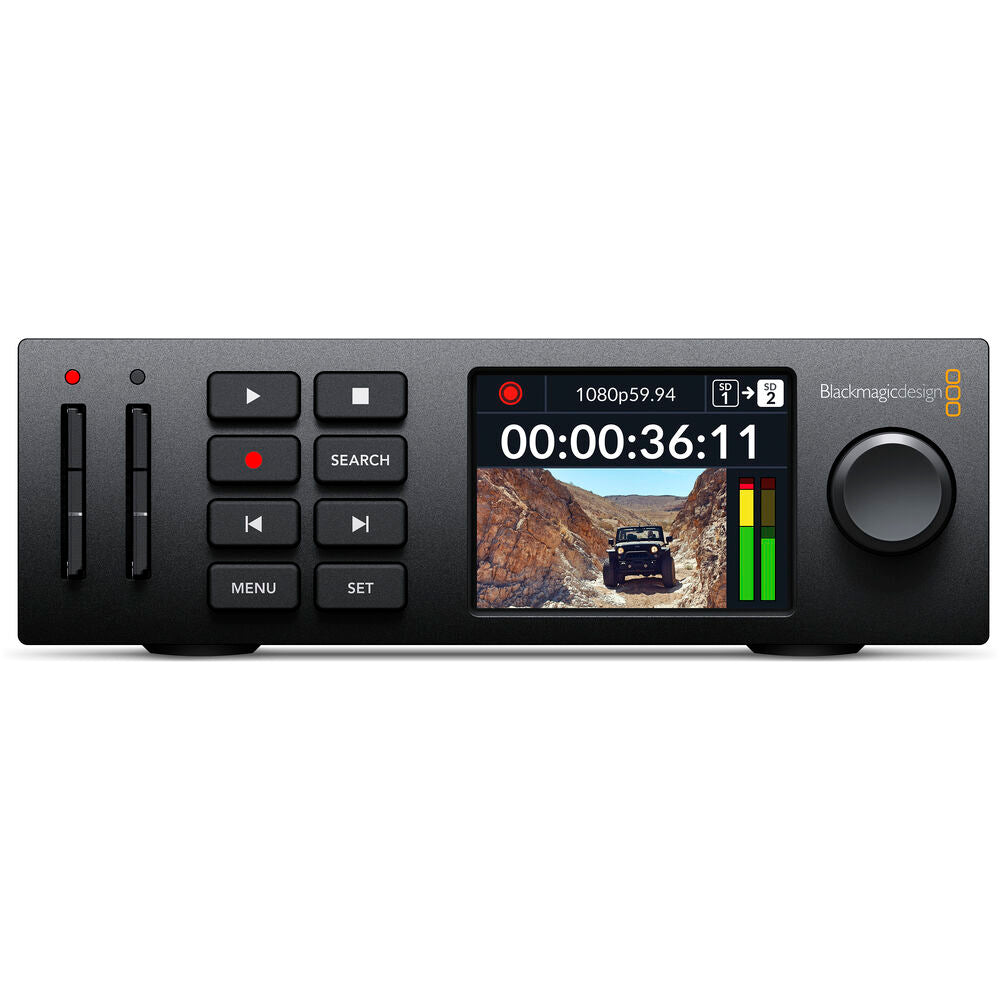

- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference InputOutput
- 13 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Specs
Blackmagic Design HyperDeck Studio HD MiniSpecs

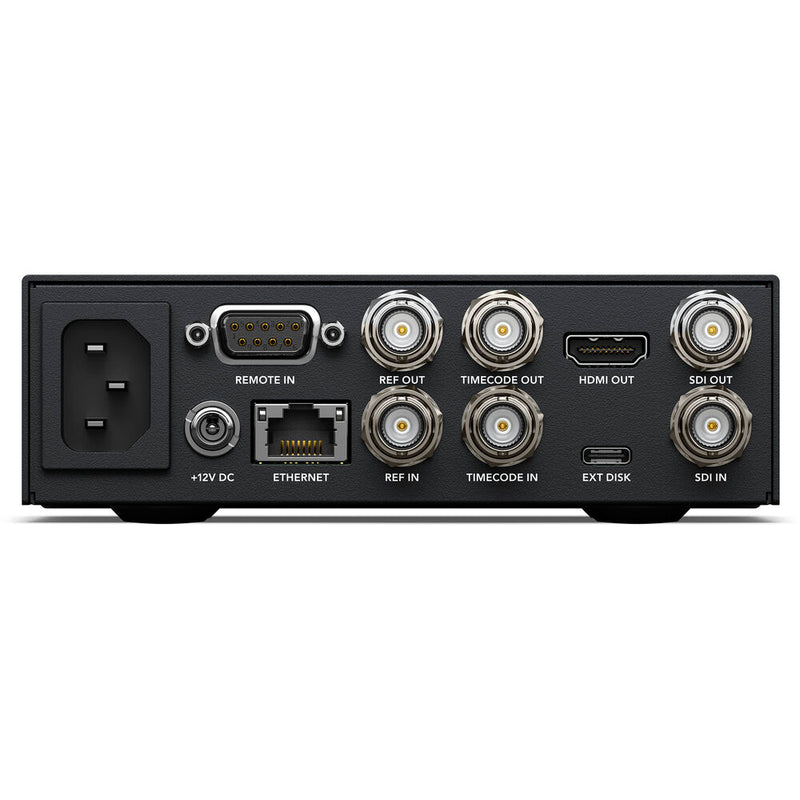

Connectivity
| Video Input | 1 x BNC, 3G-SDI |
| Video Output | 1 x BNC,3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) |
| Timecode | In 1 x BNC out 1 x BNC |
| Reference |
Tri-Sync or Black Burst Input Connector 1 x BNC Output Connector 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type UHS I and UHS II Format ExFAT or HFS+ |
Standards
| Supported Resolutions |
2K 2048 x 1080p 3029.97252423.98 HD 1920 x 1080p 6059.94503029.97252423.98 1920 x 1080i 6059.9450 1280 x 720p 6059.9450 SD NTSC PAL |
| SDI Compliance | SMPTE 259M292M296M372M424M425M Level A and B SMPTE 2084 SMPTE 21081 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA708 HDR Metadata Supported on SDI |
| Video Sampling | 422 YUV |
| Color Depth | 10-Bit |
| Color Space | REC 601 REC 709 REC 2020 |
| HDR Support | Hybrid LogGamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs |
ProRes
DNxHD
H.264
|
System Requirements
| Operating System | macOS 10.15(Catalina), 11.5 (Big Sur) or Later Windows 10 64-Bit |
General
| Rack Height | 1 RU |
| Power Supply |
AC 100 to 240 VAC, 5060 Hz DC 12 VDC; 1 x Locking 5.5 mm Barrel |
| Operating Temperature | 41 to 122F 5 to 50C |
| Storage Temperature | -4 to 113F -20 to 45C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 6.96 x 5.51 x 1.74" 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb 0.82 kg |
