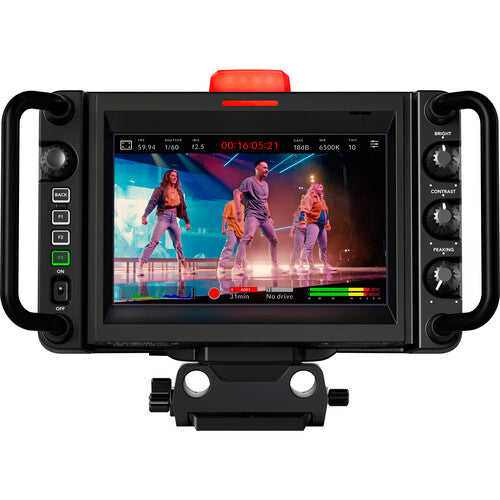

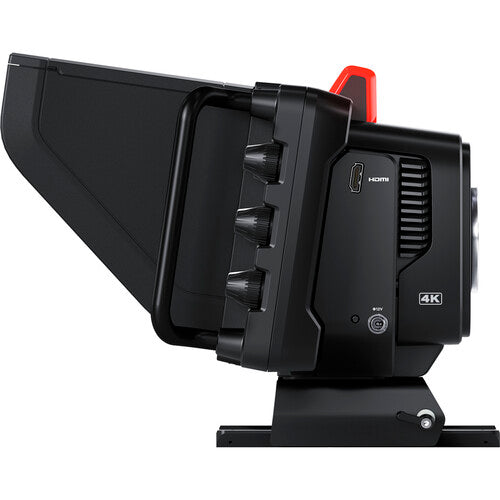

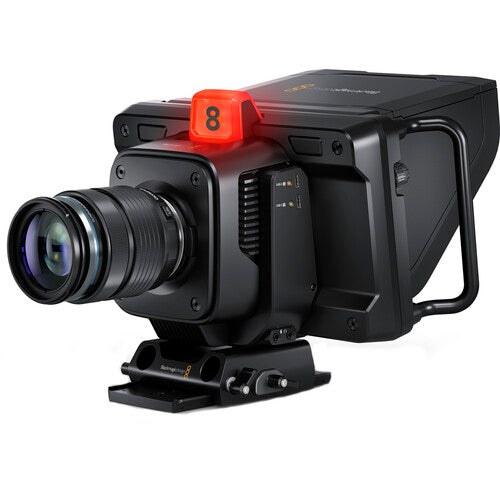

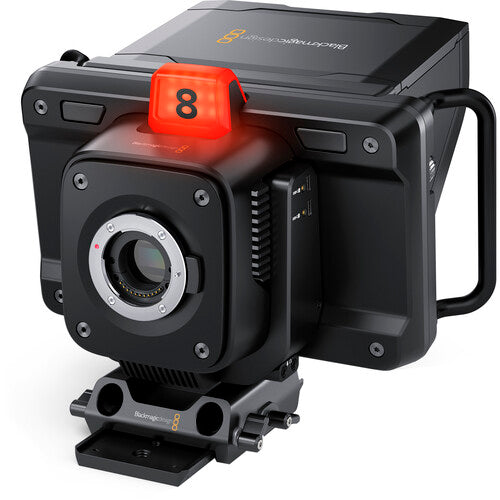

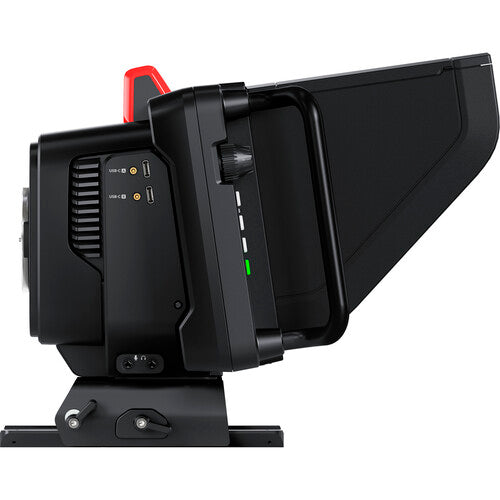

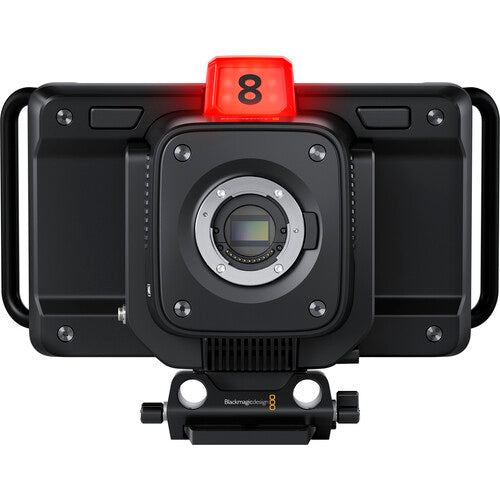

Blackmagic Design Studio Camera 4K Plus (Body Only)
GH₵36,699.00
Product Highlights
- Micro Four Thirds Lens Mount
- Capture up to UHD 4K 3840 x 2160p60
- 7" High-Brightness HDR Touchscreen LCD
- HDMI Video Output Designed for ATEM Mini
- Record to External USB Type-C Disks
- Records Blackmagic RAW, Up to 25,600 ISO
- 3.5mm Audio Input, Built-In Mics
- Built-In DaVinci Resolve Color Corrector
- Large Tally Light
- Light Carbon Fiber Polycarbonate Body
Specs
Blackmagic Design Studio Camera 4K PlusSpecs
Imaging
| Sensor Resolution | Not Specified by Manufacturer |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Signal-to-Noise Ratio | 63 dB |
Camera
| Lens Mount | Micro Four Thirds |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
Interfaces
| CCU Interface | None |
| Video Connectors | 1 xHDMI Output |
| Audio Connectors |
1 x18" 3.5 mm Stereo Mic Level Input 1 x18" 3.5 mm TRRS HeadphoneMicrophone InputOutput |
| Other IO | 2 xUSB Type-C USB 3.1 Gen 1 Data, Video InputOutput |
Recording
| Recording Modes |
DNxHDProRes 3840 x 2160p at 23.98242529.97305059.9460 fps 1920 x 1080p at 23.98242529.97305059.9460 fps |
| Raw Recording |
Blackmagic RAW 3840 x 2160 at 23.98242529.97305059.9460 fps (26 to 190 Mbs) |
| Audio Recording | Raw 2-Channel 24-Bit 48 kHz LPCM Audio |
Display
| Display Type | Fixed Touchscreen LCD |
| Size | 7" |
| Resolution | 1920 x 1200 |
EVF
Power
| Power Connectors | 1 xBarrel (12 VDC) Input |
| Power Consumption | >46 W |
Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 113F -20 to 45C |
| Operating Humidity | 0 to 90% |
General
| Accessory Mount | 2 x14"-20 Female |
| Tripod Mount | 38"-16 Female |
| Dimensions | 10.77 x 6.68 x 6.59" 27.36 x 16.97 x 16.74cm (Without Protrusions) |
| Weight | 3.71lb 1.68kg |
