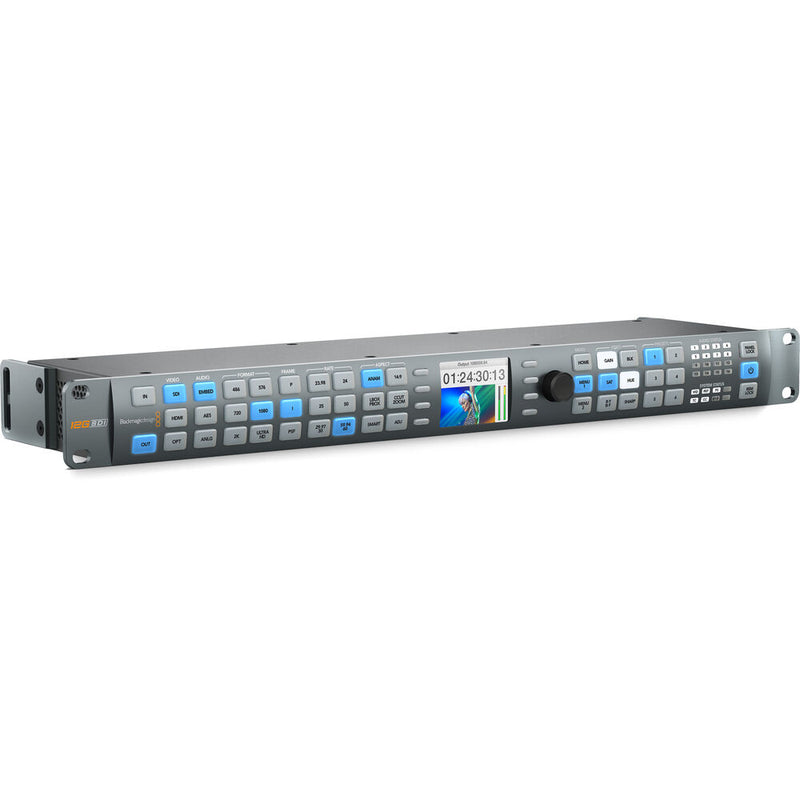

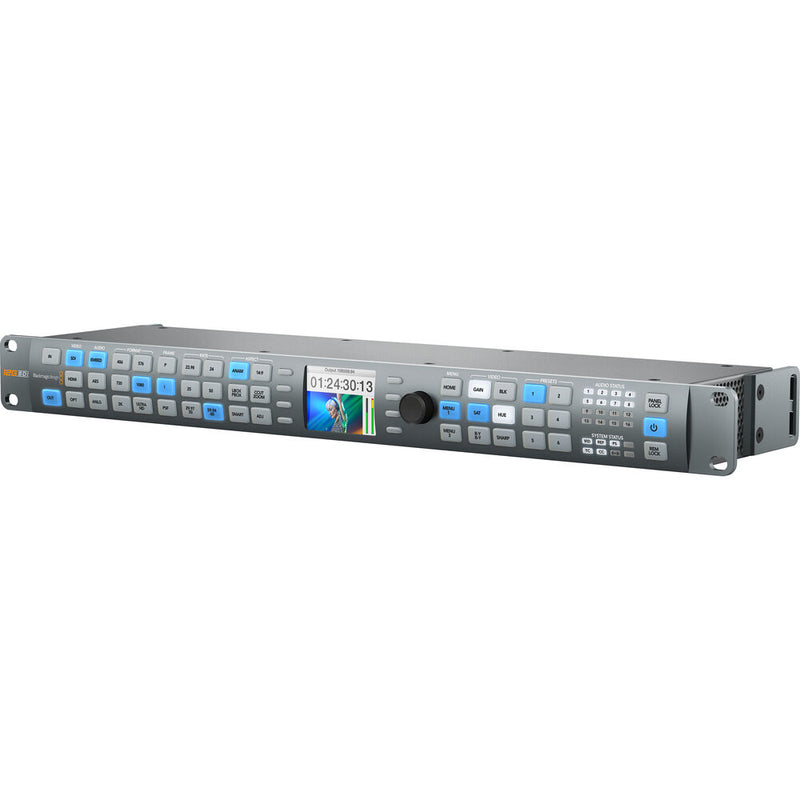

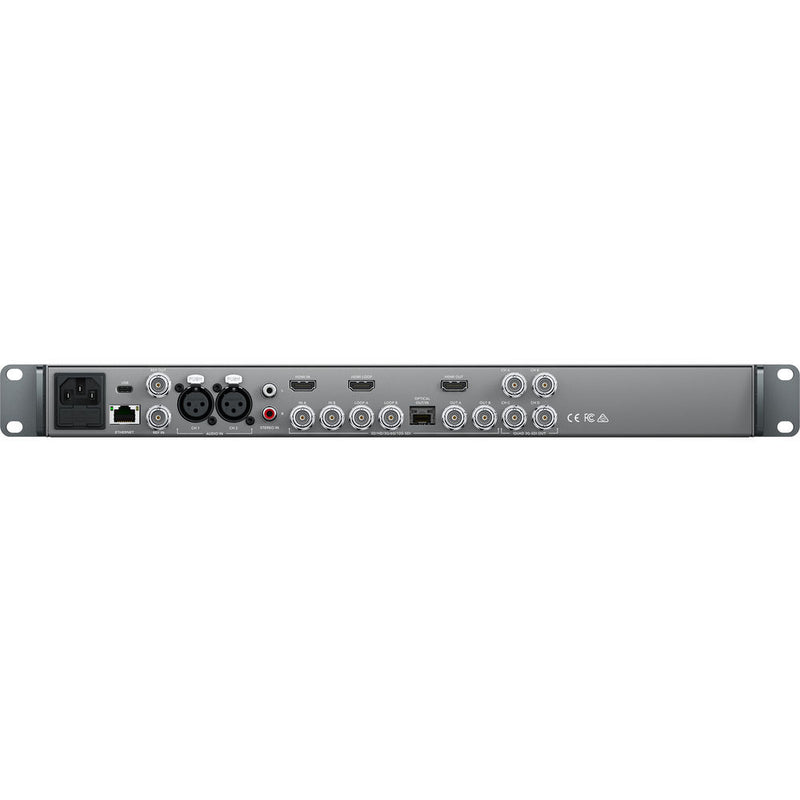

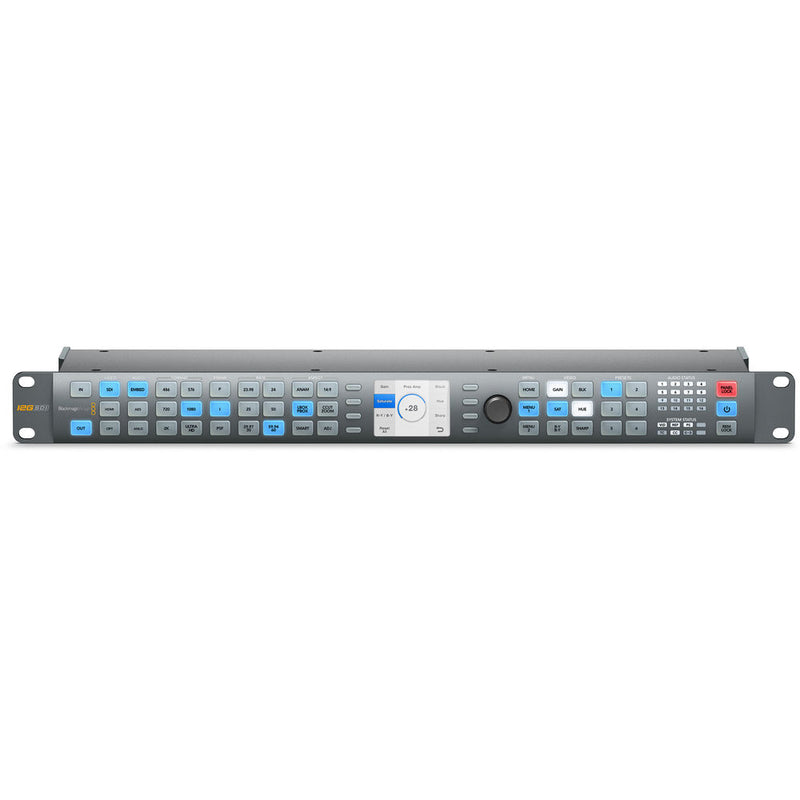

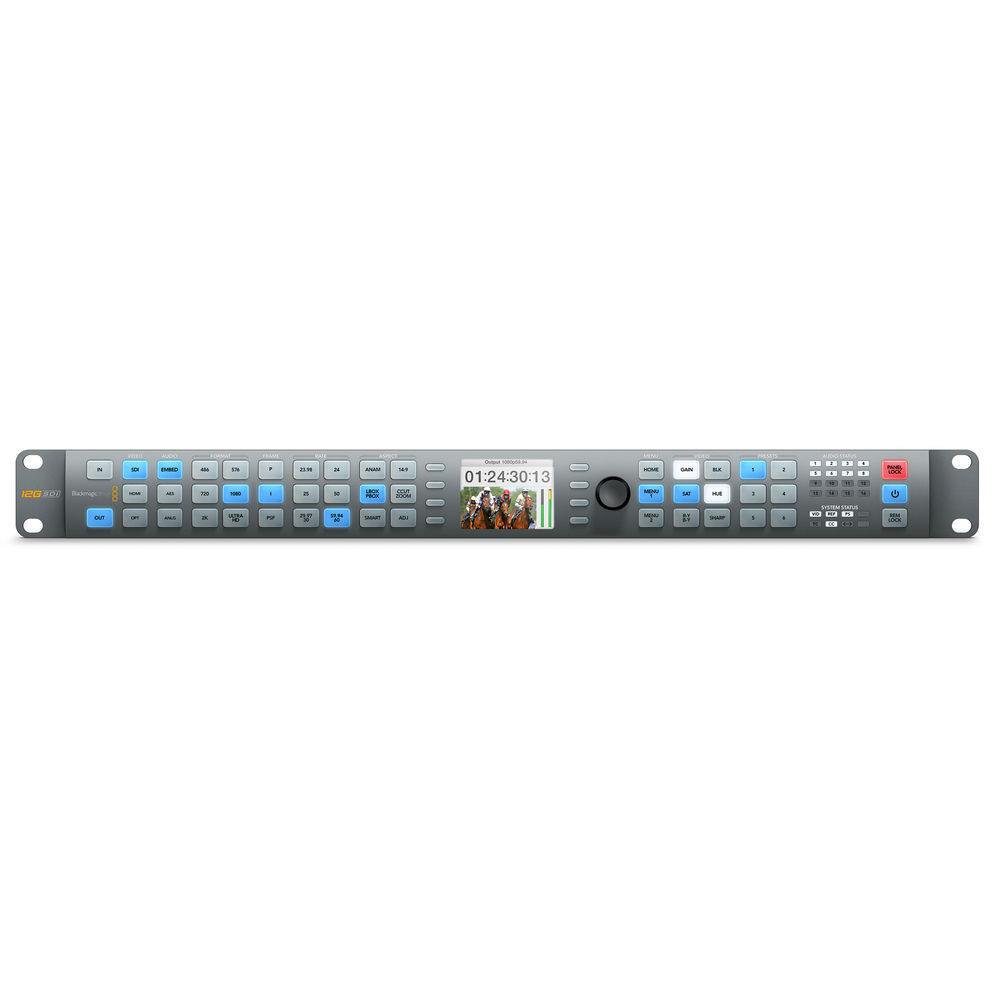

Blackmagic Design Teranex AV
GH₵47,700.00
Skip to product information
Product HighlightsDual SDHD3G6G12G-SDI IOQuad-Link SDI OutputHDMI 2.0 Input and OutputSupports SD, HD, 2K, and UHD 4KAutomatic Input Signal DetectionRedundant SDI Input & Looped SDI Output24-Bit, 48 kHz AudioXLR and RCA Audio InputsFront-Panel ControlsSoftware Control via RJ45 EthernetSpecsBlackmagic Design Teranex AVSpecsInputs2 x BNC, SDHD3G6G12G-SDI (inputs can be separate or unified for dual-link functionality)1 x HDMI Type A, v2.01 x Optical fiber (optional)1 x Stereo RCA, analog audio2 x XLR, balanced analog audio, AESEBU digital audio1 x BNC, reference1 x USB-C1 x RJ45, EthernetOutputs2 x BNC, SDHD3G6G12G-SDI (outputs can be separate or unified for dual-link functionality)4 x BNC, SDHD3G-SDI (quad-link 4K output or replicated SDI output option)1 x HDMI Type A, v2.01 x Optical fiber (optional, not available with dual-link operation)1 x BNC, reference outputFormat Support3840 x 2160 23.98242529.97305059.94602048 x 1080p 23.98242048 x 1080PsF 23.98241080p 23.98242529.97305059.94601080PsF 23.98242529.97301080i 5059.9460720p 5059.9460NTSCPALSDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425MSDI Metadata SupportVITCATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.Audio SamplingHD 24-bit, 48 kHzSD 20-bit, 48 kHzVideo Sampling422Color Depth10-bitColor SpaceREC 601, REC 709Compatible Operating SystemsMac OS X 10.10 or laterWindows 8.1, 10Power Input1 x IEC, 100-240 VAC, 50-60 HzEnvironmentalOperating Temperature 41 to 122F 5 to 50CStorage Temperature -4 to 113F -20 to 45CRelative Humidity 0-90%, non-condensingDimensions19 x 1.75 x 5" 48.3 x 4.4 x 12.7 cmWeight4.4 lb 2 kgPackaging InfoPackage Weight4.365 lbBox Dimensions (LxWxH)19.4 x 5.6 x 3.1"Product Highlights Dual SDHD3G6G12G-SDI IO Quad-Link SDI Output HDMI 2.0 Input and Output Supports SD, HD, 2K, and UHD 4K Automatic Input Signal Detection Redundant SDI Input & Looped SDI Output 24-Bit, 48 kHz Audio XLR and RCA Audio Inputs Front-Panel Controls Software Control via RJ45 Ethernet Specs BlackmProduct Highlights Dual SDHD3G6G12G-SDI IO Quad-Link SDI Output HDMI 2.0 Input and Output Supports SD, HD, 2K, and UHD 4K Automatic Input Signal Detection Redundant SDI Input & Looped SDI Output 24-Bit, 48 kHz Audio XLR and RCA Audio Inputs Front-Panel Controls Software Control via RJ45 Ethernet Specs Blackmagic Design Teranex AVSpecs Inputs 2 x BNC, SDHD3G6G12G-SDI (inputs can be separate or unified for dual-link functionality)1 x HDMI Type A, v2.01 x Optical fiber (optional)1 x Stereo RCA, analog audio2 x XLR, balanced analog audio, AESEBU digital audio1 x BNC, reference1 x USB-C1 x RJ45, Ethernet Outputs 2 x BNC, SDHD3G6G12G-SDI (outputs can be separate or unified for dual-link functionality)4 x BNC, SDHD3G-SDI (quad-link 4K output or replicated SDI output option)1 x HDMI Type A, v2.01 x Optical fiber (optional, not available with dual-link operation)1 x BNC, reference output
Blackmagic Design Teranex AV
GH₵47,700.00
Product HighlightsDual SDHD3G6G12G-SDI IOQuad-Link SDI OutputHDMI 2.0 Input and OutputSupports SD, HD, 2K, and UHD 4KAutomatic Input Signal DetectionRedundant SDI Input & Looped SDI Output24-Bit, 48 kHz AudioXLR and RCA Audio InputsFront-Panel ControlsSoftware Control via RJ45 EthernetSpecsBlackmagic Design Teranex AVSpecsInputs2 x BNC, SDHD3G6G12G-SDI (inputs can be separate or unified for dual-link functionality)1 x HDMI Type A, v2.01 x Optical fiber (optional)1 x Stereo RCA, analog audio2 x XLR, balanced analog audio, AESEBU digital audio1 x BNC, reference1 x USB-C1 x RJ45, EthernetOutputs2 x BNC, SDHD3G6G12G-SDI (outputs can be separate or unified for dual-link functionality)4 x BNC, SDHD3G-SDI (quad-link 4K output or replicated SDI output option)1 x HDMI Type A, v2.01 x Optical fiber (optional, not available with dual-link operation)1 x BNC, reference outputFormat Support3840 x 2160 23.98242529.97305059.94602048 x 1080p 23.98242048 x 1080PsF 23.98241080p 23.98242529.97305059.94601080PsF 23.98242529.97301080i 5059.9460720p 5059.9460NTSCPALSDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425MSDI Metadata SupportVITCATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.Audio SamplingHD 24-bit, 48 kHzSD 20-bit, 48 kHzVideo Sampling422Color Depth10-bitColor SpaceREC 601, REC 709Compatible Operating SystemsMac OS X 10.10 or laterWindows 8.1, 10Power Input1 x IEC, 100-240 VAC, 50-60 HzEnvironmentalOperating Temperature 41 to 122F 5 to 50CStorage Temperature -4 to 113F -20 to 45CRelative Humidity 0-90%, non-condensingDimensions19 x 1.75 x 5" 48.3 x 4.4 x 12.7 cmWeight4.4 lb 2 kgPackaging InfoPackage Weight4.365 lbBox Dimensions (LxWxH)19.4 x 5.6 x 3.1"Product Highlights Dual SDHD3G6G12G-SDI IO Quad-Link SDI Output HDMI 2.0 Input and Output Supports SD, HD, 2K, and UHD 4K Automatic Input Signal Detection Redundant SDI Input & Looped SDI Output 24-Bit, 48 kHz Audio XLR and RCA Audio Inputs Front-Panel Controls Software Control via RJ45 Ethernet Specs BlackmProduct Highlights Dual SDHD3G6G12G-SDI IO Quad-Link SDI Output HDMI 2.0 Input and Output Supports SD, HD, 2K, and UHD 4K Automatic Input Signal Detection Redundant SDI Input & Looped SDI Output 24-Bit, 48 kHz Audio XLR and RCA Audio Inputs Front-Panel Controls Software Control via RJ45 Ethernet Specs Blackmagic Design Teranex AVSpecs Inputs 2 x BNC, SDHD3G6G12G-SDI (inputs can be separate or unified for dual-link functionality)1 x HDMI Type A, v2.01 x Optical fiber (optional)1 x Stereo RCA, analog audio2 x XLR, balanced analog audio, AESEBU digital audio1 x BNC, reference1 x USB-C1 x RJ45, Ethernet Outputs 2 x BNC, SDHD3G6G12G-SDI (outputs can be separate or unified for dual-link functionality)4 x BNC, SDHD3G-SDI (quad-link 4K output or replicated SDI output option)1 x HDMI Type A, v2.01 x Optical fiber (optional, not available with dual-link operation)1 x BNC, reference output
