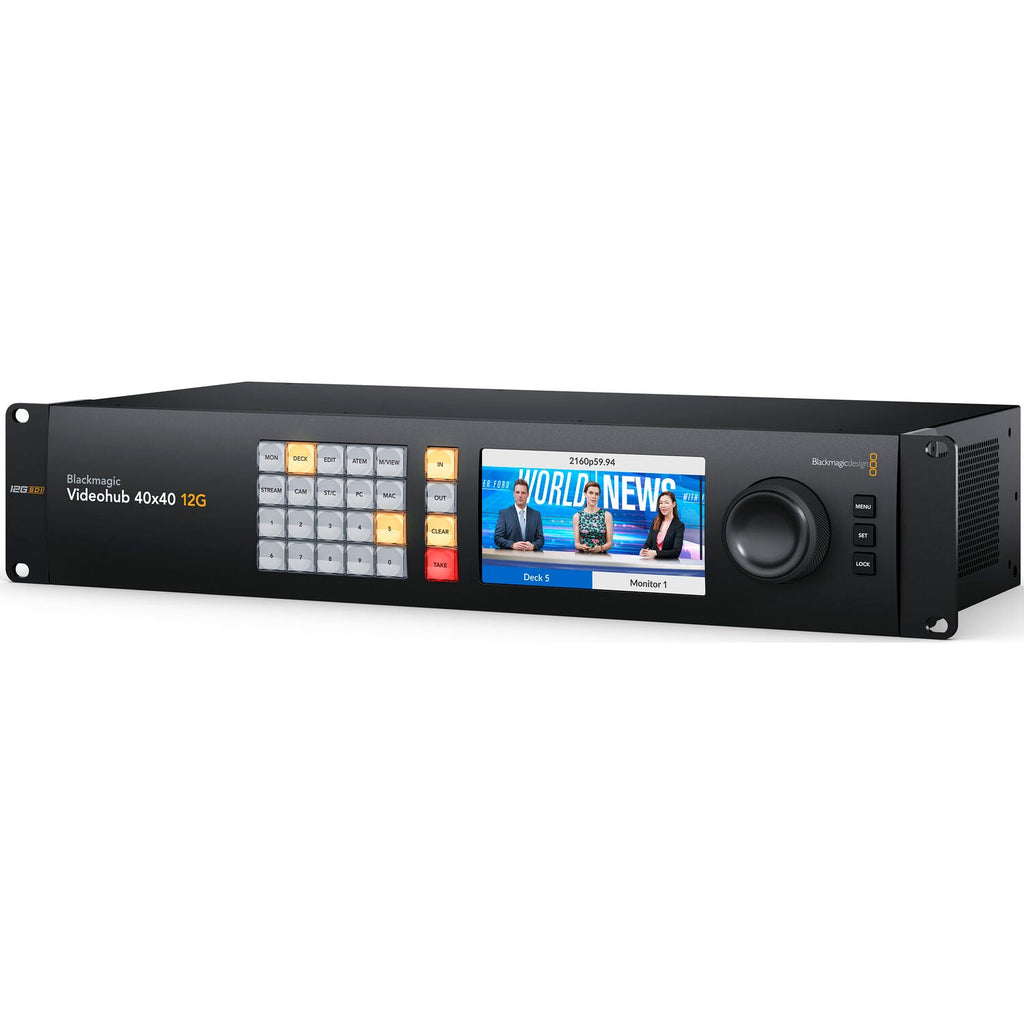

Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router
GH₵97,495.00
Product Highlights
- Zero-Latency Routing Switcher
- 40 x 12G-SDI Inputs,40 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, 2 RU Form
- Includes Videohub MacWindows Software
Specs
Blackmagic Design VHUBSMAS12G4040Specs
Processing
| Switching Type | Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 8-Bit 422 10-Bit 422 12-Bit 444 |
| Audio Processing | 48 kHz 24-Bit |
Input

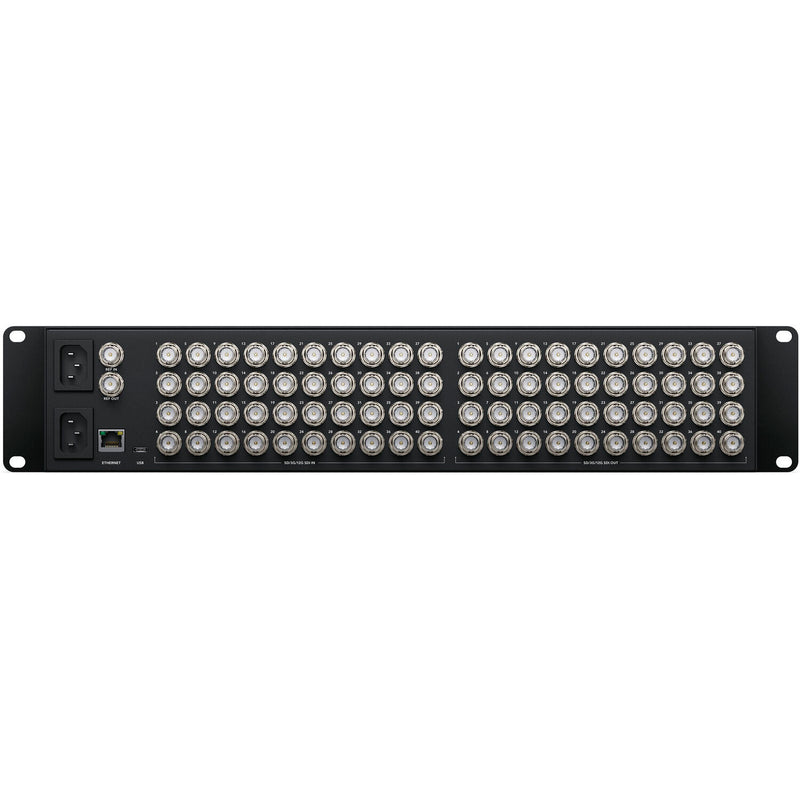

| Video Inputs | 40 xBNC (12G-SDI) |
| Input Video Format |
SDI (1012-Bit 444 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 422 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 5059.9460 fps 576i 625 lines at 50 fps 480i 525 lines at 59.94 fps |
| Embedded Audio Input | SDI |
Output
| Video Outputs | 40 xBNC (12G-SDI) |
| Output Video Format |
SDI (1012-Bit 444 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 422 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 5059.9460 fps 576i 625 lines at 50 fps 480i 525 lines at 59.94 fps |
| Embedded Audio Output | SDI |
Connectivity
| Other IO |
1 xRJ45 LAN 1 xUSB-C |
| Video Standard Compliance | SMPTE 259M292M296M372M424M425M-A425M-BST-2081-1ST-2081-10ST-2082-10 ITU -R BT.601BT.656 |
Display
| Display Size | 2.2" |
Hardware
| OS Compatibility | macOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of April, 2023 Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power IO | 1 xIEC C14 (100 to 240 VAC) Input |
| Power Consumption | 27.5 W |
Environmental
| Operating Temperature | 32 to 104F 0 to 40C |
| Storage Temperature | -4 to 140F -20 to 60C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
General
| Rack Form Factor | 2 RU |
| Dimensions | 19 x 9.37 x 3.46" 48.3 x 23.8 x 8.79cm |
| Weight | 12.3lb 5.6kg |
